Halbach Magnets Introduction

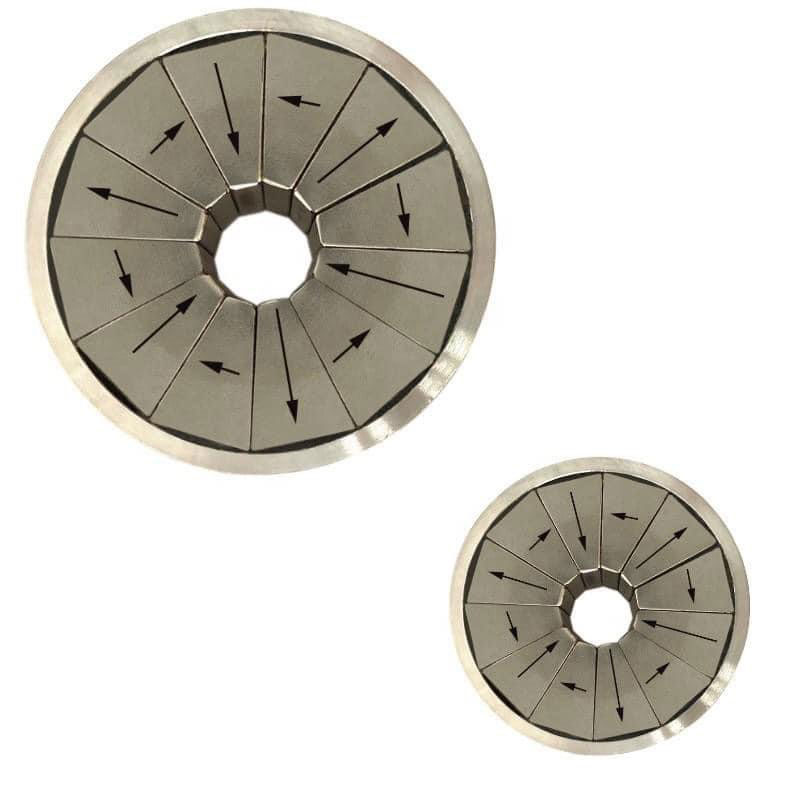

Halbach arrays are magnetic arrays that have become increasingly popular due to their unique properties. They consist of a series of permanent magnets arranged in a specific configuration, which creates a strong magnetic field on one side and a weak magnetic field on the other. This configuration is ideal for many applications, including electric motors, generators, and magnetic levitation systems. In this article, we will explore the application of Halbach arrays in two different types of magnets: neodymium iron boron (NdFeB) and ferrite magnets.

Magnetic Levitation Trains

Magnetic levitation (maglev) trains use the repelling force between two magnets to levitate the train above the track, which eliminates contact between the train and the track. HALBACH arrays made of NdFeB magnets are used in maglev trains to create the repelling force required for levitation. These arrays are arranged in a specific pattern to produce a uniform magnetic field, thereby ensuring stable levitation.

Electric Vehicles

Electric vehicles (EVs) are becoming increasingly popular due to their environmental friendliness and fuel efficiency. NdFeB HALBACH arrays are used in EVs to produce the required torque for efficient operation. The array is typically placed on the rotor of the motor to produce a strong rotating magnetic field that interacts with the stator, causing the rotor to rotate.

MRI Machines

Magnetic resonance imaging (MRI) machines use strong magnetic fields and radio waves to produce high-resolution images of internal organs. HALBACH arrays made of NdFeB magnets are used in MRI machines to produce the strong magnetic field required for imaging. These arrays are arranged in a specific pattern around the patient, ensuring that the magnetic field is uniform and stable.

Ferrite HALBACH Arrays
Ferrite magnets are less expensive than NdFeB magnets and possess reasonable energy density, which makes them suitable for low to medium-power applications. HALBACH arrays made of ferrite magnets find application in various fields such as loudspeakers, craft magnets, and magnetic separators.

Loudspeakers

Ferrite HALBACH arrays are commonly used in loudspeakers to produce the magnetic field required to move the speaker cone. The array is typically placed around the voice coil, which is attached to the speaker cone. When an audio signal is applied to the voice coil, it moves in the magnetic field produced by the HALBACH array, which results in the movement of the speaker cone.

Craft Magnets

Craft magnets are used for various purposes such as holding notes, photographs, and other lightweight items on a metal surface. Ferrite HALBACH arrays are used in craft magnets to produce a strong magnetic field. The array is typically placed inside a plastic or rubber-coated shell to prevent scratching of the metal surface.

Magnetic Separators

Magnetic separators are used in various industrial processes to separate magnetic materials from non-magnetic materials. Ferrite HALBACH arrays are commonly used in magnetic separators to produce a strong magnetic field that attracts magnetic materials. The array is typically placed inside a magnetic drum, which rotates to separate the magnetic material from non-magnetic material.

Halbach Arrays for NdFeB Magnets

NdFeB magnets are some of the strongest permanent magnets available and are used extensively in a variety of applications. The most common use for NdFeB magnets is in electric motors, where their strength and resistance to demagnetization make them ideal. However, NdFeB magnets are also used in aerospace, medical, and defense applications, where their strength and durability are especially important.

One of the most significant benefits of using a Halbach array for NdFeB magnets is the increased magnetic field on one side of the array. This configuration allows for a stronger magnetic field to be generated, which can result in more efficient motors and generators. Additionally, the Halbach array reduces the stray magnetic field of the NdFeB magnets, which can be important in many applications.

Another benefit of using a Halbach array for NdFeB magnets is improved stability. The magnets are arranged in a specific pattern that allows for more even distribution of the magnetic field, reducing the chance of demagnetization or other issues. Additionally, the Halbach array reduces the magnetic interference between individual magnets, which can improve overall stability.

Halbach Arrays for Ferrite Magnets

Ferrite magnets, also known as ceramic magnets, are a type of permanent magnet that is less expensive and less strong than NdFeB magnets. Ferrite magnets are commonly used in automotive, aerospace, and telecommunications applications, where their low cost and good magnetic properties are useful.

Using a Halbach array with ferrite magnets can provide several benefits. One of the most significant advantages is increased magnetic field strength on one side of the array, similar to the benefits in NdFeB magnets. This increased magnetic field can be especially important in applications where the magnet needs to be more powerful but cannot use a more expensive NdFeB magnet.

Another benefit of using a Halbach array with ferrite magnets is that it can improve the magnetic properties of the magnets themselves. Ferrite magnets are known for their low coercivity, which means that they are easily demagnetized. However, the Halbach array can reduce the demagnetization of the ferrite magnets, which can improve their overall magnetic properties.

Advantages of Manufacturing Halbach Arrays at Zhejiang Zhongke Magnetic Industry Co., Ltd.

Zhejiang Zhongke Magnetic Industry Co., Ltd. is a leading manufacturer of Halbach arrays for a variety of applications. The company has extensive experience in producing high-quality Halbach arrays for both NdFeB and ferrite magnets and has a number of advantages over other manufacturers.

Firstly, the company has a strong research and development team that is constantly working to improve the performance of its Halbach arrays. This team is composed of experienced engineers and scientists who have a deep understanding of magnetic materials and their properties.

Secondly, Zhejiang Zhongke Magnetic Industry Co., Ltd. has world-class manufacturing facilities that utilize advanced technology and equipment. This allows the company to produce high-quality Halbach arrays quickly and efficiently, which can save its customers time and money.

Lastly, Zhejiang Zhongke Magnetic Industry Co., Ltd. has a strong commitment to quality and customer service. The company takes great care to ensure that its Halbach arrays meet the highest standards of quality and performance, and it works closely with its customers to understand their needs and provide customized solutions.

In conclusion, Halbach arrays are an innovative and versatile technology that can be applied to many different applications. Whether for NdFeB or ferrite magnets, Halbach arrays offer many benefits, including increased magnetic field strength and improved stability. Additionally, Zhejiang Zhongke Magnetic Industry Co., Ltd. is a leading manufacturer of Halbach arrays, with the expertise and technology necessary to produce high-quality arrays for a variety of applications.
