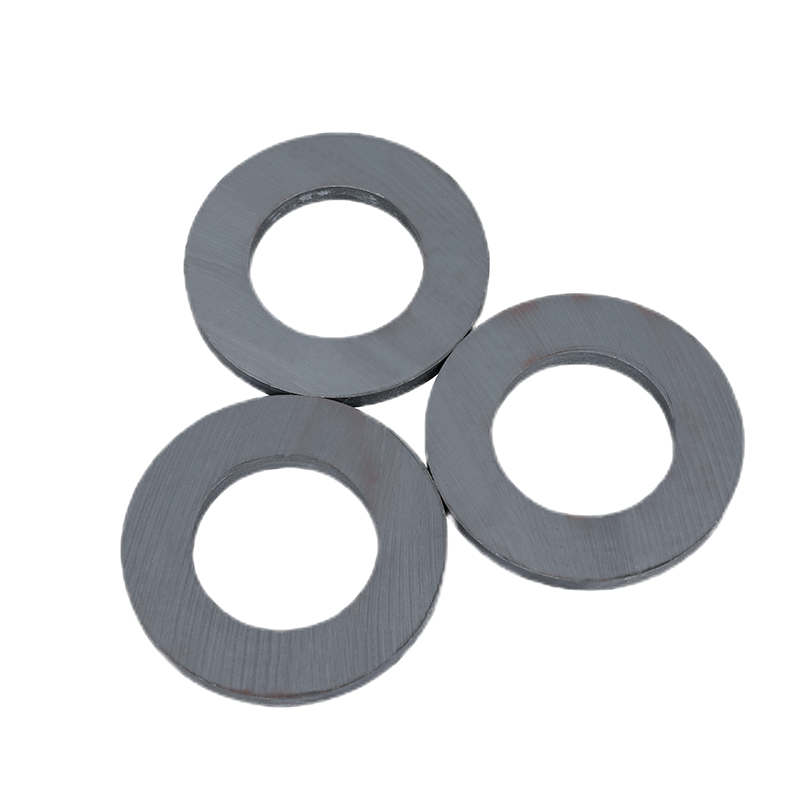

How Are Ferrite Ring Magnets Manufactured?

1. Preparation of Raw Materials

The manufacturing of ferrite ring magnets starts with the preparation of raw materials. The main component of ferrite magnets is iron oxide (Fe2O3), which needs to be mixed with compounds of elements such as barium (Ba) or strontium (Sr), such as barium carbonate (BaCO3) or strontium carbonate (SrCO3). These raw materials must be carefully weighed and mixed according to specific proportions to ensure that the final magnet has the required chemical composition and magnetic properties. The mixing process requires special attention because the uniformity of the materials directly affects the pressing effect in the subsequent processing steps and the performance of the final product. The purity and quality of the raw materials largely determine the properties of the magnet, such as magnetic flux density and remanence. Therefore, manufacturers must ensure that these raw materials are free of impurities and properly mixed when selecting and processing them to meet the needs of high-performance magnets.

2. Grinding and Mixing

After the raw materials are prepared, they will be fed into the grinding process. Grinding is the use of ball mills or other special equipment to crush the mixed raw materials into extremely fine particles, usually at the micron level. This process is crucial to achieve uniformity and high density of the final product, as the fineness of the particles directly affects the physical strength and magnetic properties of the magnet. The grinding process not only crushes the material to the appropriate fineness, but also ensures a uniform distribution of particle sizes to ensure a dense structure during the subsequent pressing and sintering process. After grinding, the powder is mixed with a binder that helps the powder to form during the pressing process and ensures that the powder does not spread or move during the pressing and sintering process. The uniformity of the powder also needs to be maintained during the mixing process to ensure the quality and consistency of the final product.

3. Pressing and Forming

After the grinding and mixing process, the powder material will be sent to the pressing stage. In this stage, the powder is placed in a mold designed to the shape of the magnet and then pressed under high pressure. The pressing process can be dry or wet pressing, depending on the choice of manufacturing process. Pressing is a crucial step in the manufacturing process because it determines the initial shape and density of the magnet. In order to ensure that the density of the magnet is uniform throughout the volume, uniform pressure must be applied. The uniform distribution of pressure is important for the magnetic properties and mechanical strength of the magnet during the subsequent sintering process. During the pressing process, operators need to carefully monitor the pressure and the distribution of powder in the mold to ensure that each magnet meets the design standards.

4. Sintering

After the pressing process is completed, the pressed ring magnet is still relatively fragile and does not yet have strong magnetic properties. In order to enhance the structural strength of the magnet and give it magnetic properties, the pressed magnet will be sintered. Sintering is the process of heating the pressed magnet at high temperatures (usually between 1000°C and 1300°C). This process is carried out in a controlled atmosphere to prevent the material from oxidizing or producing other undesirable reactions. During the sintering process, the material particles are combined with each other to form a denser structure, thereby improving the mechanical strength and density of the magnet. Sintering also induces the alignment of magnetic domains inside the magnet, which significantly enhances the magnetic properties of the magnet. The temperature and time of sintering need to be precisely controlled to ensure that the magnet achieves the best performance. Different types of ferrite magnets may require different sintering conditions, which makes the sintering process one of the most critical steps in the manufacturing process.

5. Magnetization

After sintering is completed and cooled, the magnet will undergo magnetization. The purpose of this step is to align the magnetic domains inside the magnet by exposing it to a strong external magnetic field, thereby giving the magnet permanent magnetism. During the magnetization process, the magnet is placed in a strong magnetic field that forces the magnetic domains to align in a direction, causing the magnet to produce the desired magnetic field strength. The strength of the magnetic field and the duration of application are precisely adjusted according to the desired magnetic properties. This process is critical because it gives the magnet permanent magnetism, allowing it to work effectively in future applications. After magnetization, the magnets are usually subjected to a series of tests to ensure that they meet the specified magnetic performance standards. If the magnetism of the magnets does not meet the requirements, they may be re-magnetized or discarded.

6. Surface Treatment and Quality Control

After the magnetization process, the ferrite ring magnets also need surface treatment and further quality control. Surface treatment may include surface grinding, coating or other special treatments to ensure that the magnets meet the required dimensions, surface finish and corrosion resistance. Quality control is particularly important at this stage, and each magnet is inspected for defects such as cracks, chips or inconsistent magnetic strength. Advanced testing equipment is used to measure the magnetic and physical properties of the magnets to ensure that each magnet meets the required standards. The stringency of quality control is directly related to the performance of the final product and customer satisfaction. Any magnet that does not meet the standards will be reprocessed or scrapped, ensuring that only products that meet the standards enter the market.

7. Packaging and Distribution

After strict quality control, the ferrite ring magnets are ready for packaging and distribution. Depending on the application requirements, the magnets may be packaged individually or in bulk, and the packaging materials are usually protected from damage during transportation. Since ferrite magnets are relatively fragile and easily damaged by collisions or vibrations during transportation, special attention needs to be paid during the packaging process. The packaging design of the magnets needs to ensure that they can maintain their integrity and magnetic properties during transportation and storage. After being properly packaged, the magnets will be sent to customers to meet their needs in various industrial applications such as electronic devices and motors.
